Investigate results

Use this page when you need to understand why events were stitched, why events were excluded, or whether the event profile graph is safe to use downstream.

Start in the UI, then use the warehouse output tables for detailed investigation.

Investigation workflow

Use this order after a new project, a configuration change, or an unexpected metric movement:

1. Open Overview to check processed events, stitch rate, profiles, trends, model breakdown, and identifier breakdown.

2. Open Runs to confirm the latest run succeeded and processed the expected event volume.

3. Open Quality to inspect health checks, identifier quality, exclusion reasons, and audit entries.

4. Open Policy to review priority, anchors, limits, stitching lifetime, and blocked values.

5. Query the public output tables when you need event-level or profile-level proof.

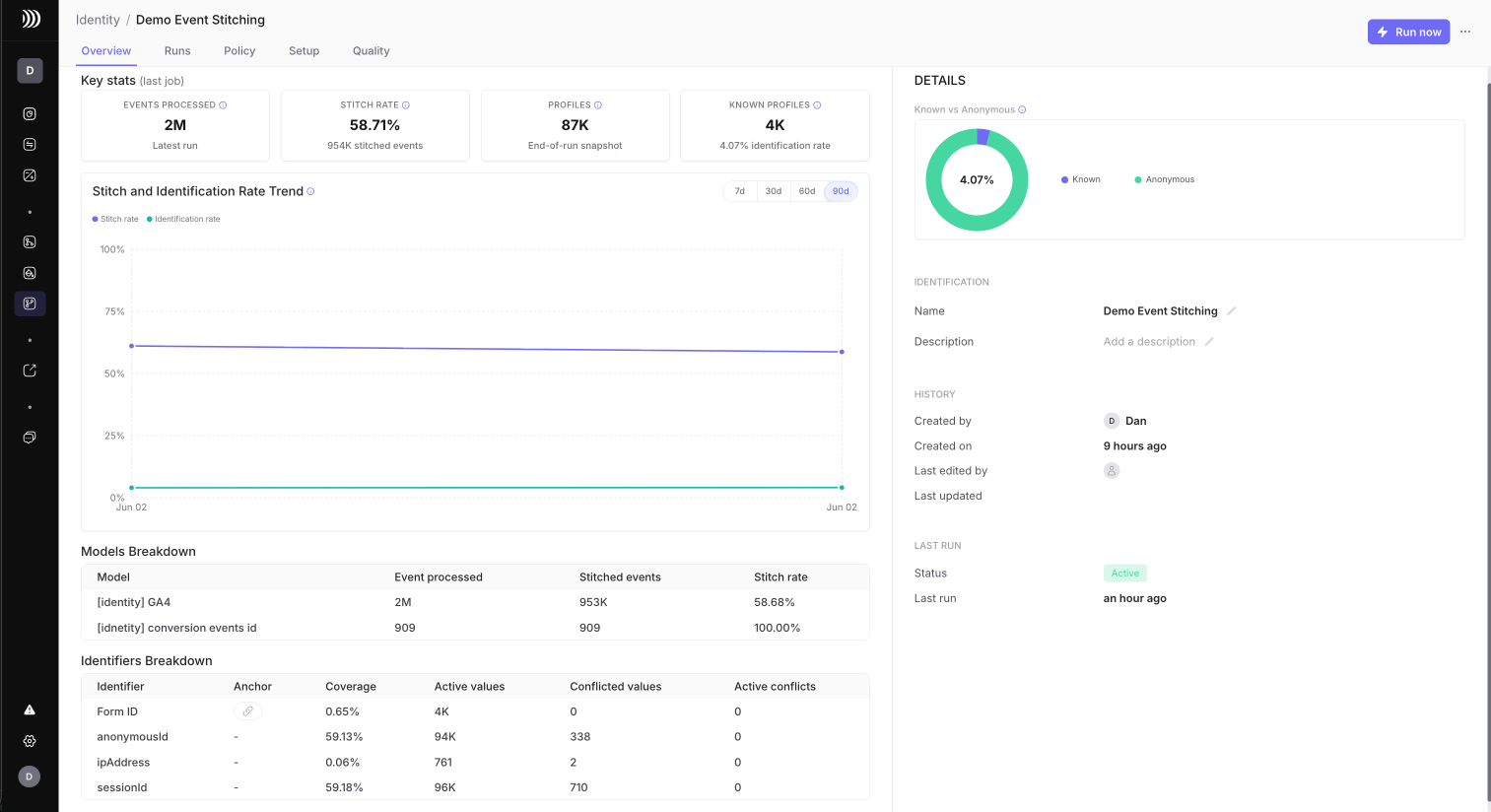

Overview tab

Use Overview to answer:

• How many events were processed in the latest run?

• What share of events were stitched?

• How many active profiles exist after the run?

• What share of profiles are known through anchor identifiers?

• Which model has the lowest stitch rate?

• Which identifier has low coverage or high conflicts?

Start with Overview to compare latest-run KPIs, trends, model health, and identifier health.

If the stitch rate is lower than expected, look first at the model breakdown. A single model with low stitch rate often points to missing identifiers, wrong field mapping, or a tracking change.

If active conflicts are not zero, inspect Quality before using outputs downstream.

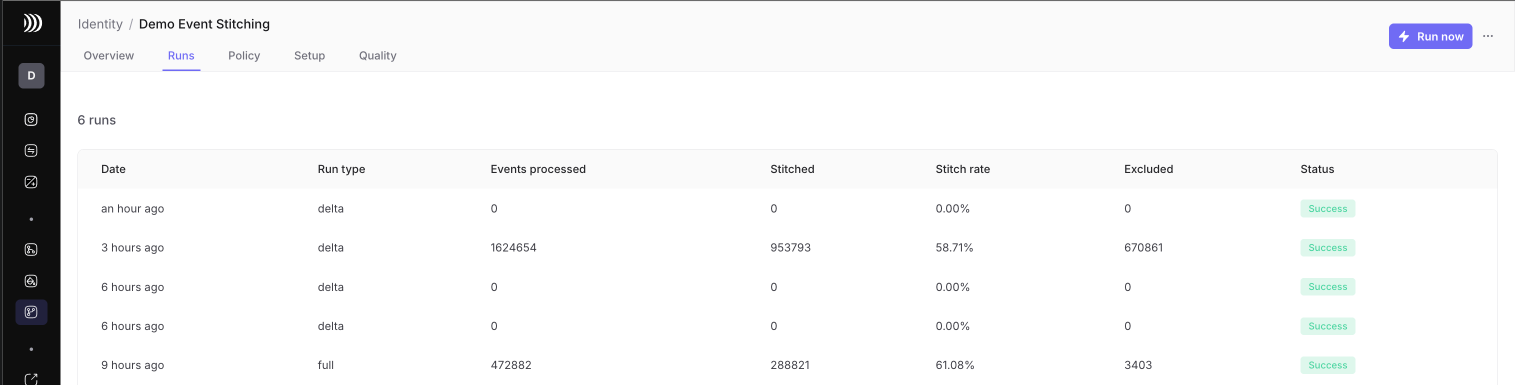

Runs tab

Use Runs to answer:

• Did the latest run succeed?

• Was the run manual or scheduled?

• How many events were processed?

• How many were stitched?

• How many were excluded?

• Did stitch rate change sharply from previous runs?

Use Runs to compare processed volume, stitch rate, exclusions, and run status over time.

When a run fails, check source field changes, output permissions, and whether the selected event partition column still exists.

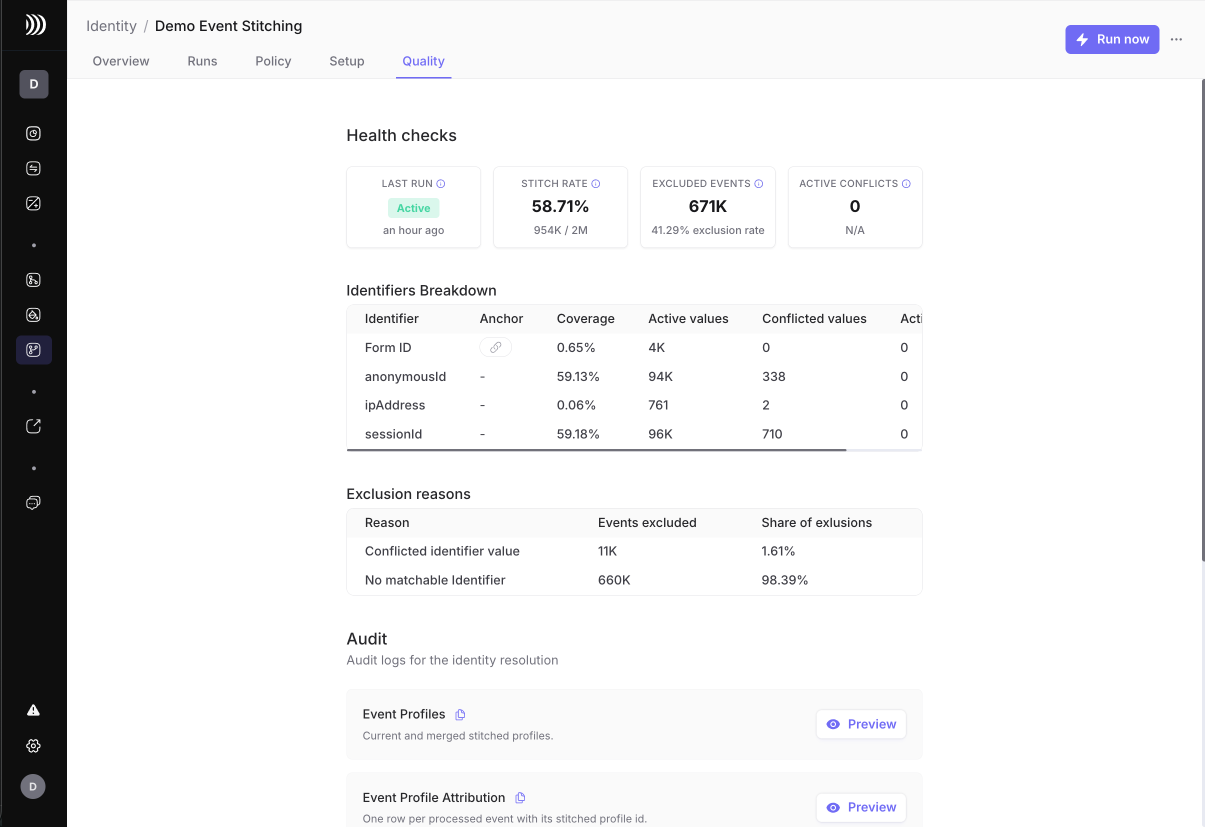

Quality tab

Use Quality to answer:

• Are health checks green?

• Are active conflicts zero?

• Which identifiers have low coverage?

• Which identifiers have many conflicted values?

• Why were events excluded?

• Which audit events explain recent graph changes?

Use Quality to understand exclusions, identifier conflicts, and audit signals.

Interpret exclusion reasons this way:

Reason	Meaning	First action
no_matchable_identifier	The event had no usable identifier after standardization, blocked values, and stitching lifetime checks.	Check mappings and identifier coverage.
conflicted_identifier_value	The event depended on a quarantined identifier value.	Inspect weak identifiers, max profiles per value, and blocked values.
limit_conflict	Stitching the event would violate a configured identifier policy.	Review identifier priority, anchor settings, and limits.

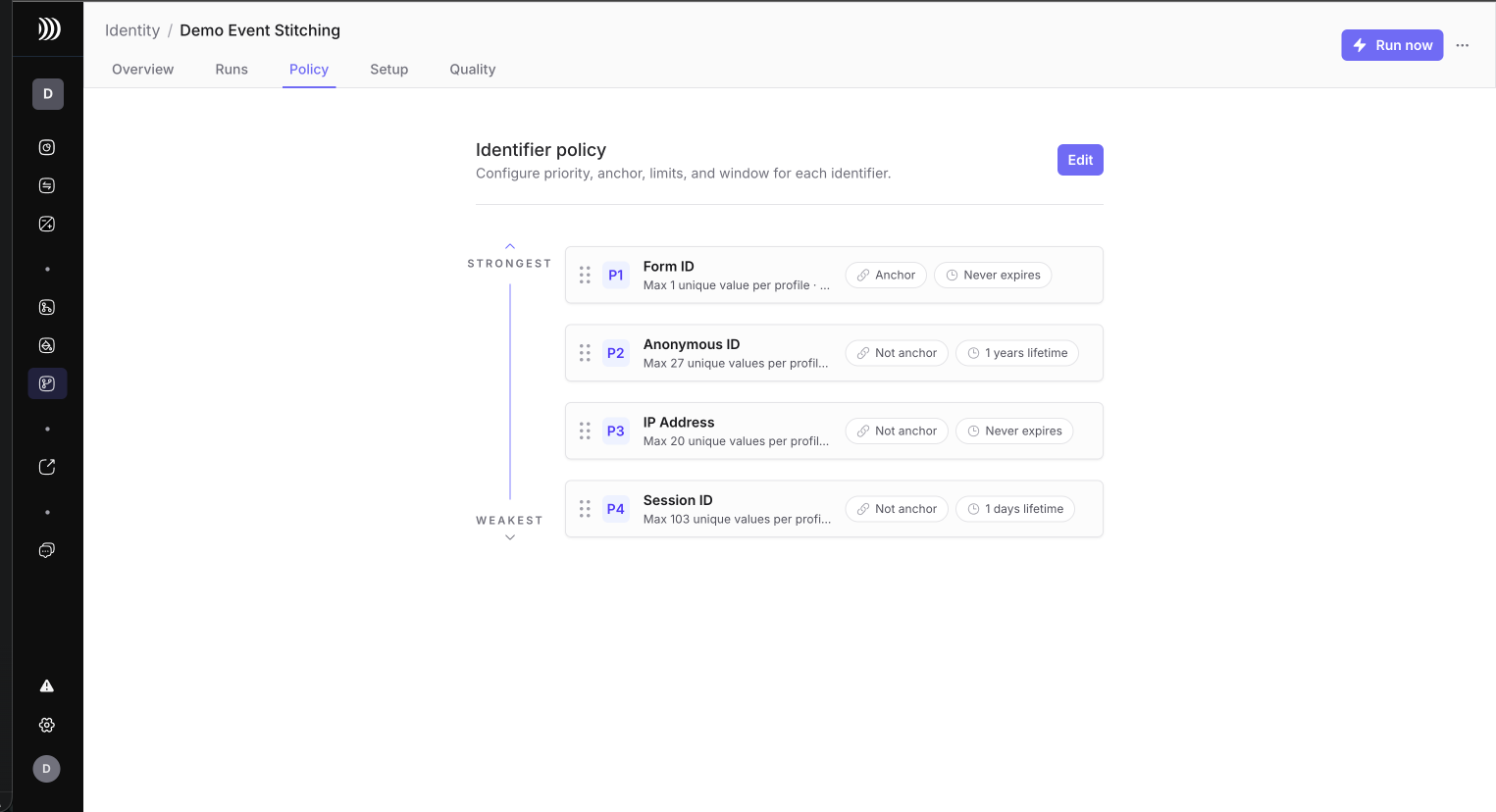

Policy tab

Use Policy when you need to adjust matching behavior.

Use Policy to review or edit identifier priority, anchor settings, limits, stitching lifetime, and blocked values.

Common changes:

Symptom	Policy adjustment
Low stitch rate because identifiers expire too quickly	Increase stitching lifetime for trusted identifiers.
Weak identifiers connect too many profiles	Lower Max profiles per value or shorten stitching lifetime.
One profile accumulates too many active values for one identifier	Lower Max unique values per profile.
Placeholder values appear in audit or exclusions	Add them to blocked values.
Weak identifiers dominate matching	Move them lower in priority and keep anchors at the top.

Do not loosen limits only to improve stitch rate. A high stitch rate is useful only when the resulting event profile graph remains explainable.

Warehouse output tables

Event Stitching writes public output tables in the connected source, usually in dinmo_identity.

Physical table names may include the project ID. In the queries below, replace the logical table names with the physical names shown in DinMo.

Table	Use it for
identity_event_profile_attribution	Event-level attribution and exclusion reasons.
identity_event_profiles	Current and merged event profiles.
identity_event_profile_identifier_values	Identifier values attached to event profiles.
identity_event_profile_redirects	Resolve older profile IDs after merges.
identity_event_profile_audit_events	Explain graph changes and guardrail decisions.
identity_event_profile_run_metrics	Aggregated metrics by run, model, identifier, exclusion reason, and audit event type.

See Event Stitching output tables for the table reference.

Read the audit trail

Use audit outputs when a metric tells you that something changed, but you need to know why.

Starting point	Question	Tables to inspect
Event ID	Why was this event stitched or excluded?	identity_event_profile_attribution, then identity_event_profile_audit_events
Identifier value	Is this value active, expired, blocked, demoted, or conflicted?	identity_event_profile_identifier_values, then audit events
Old profile ID	Where did this profile merge?	identity_event_profile_redirects
Current profile ID	Which identifiers and events explain this profile?	Profiles, identifier values, attribution
Run ID	What changed during this run?	Run metrics and audit events

For downstream models, join on resolved_dinmo_stitched_profile_id. Use raw dinmo_stitched_profile_id only when you are intentionally inspecting historical IDs and redirects.

Query latest run metrics

Use run metrics to reproduce UI-level numbers without scanning all event history:

select
  metric_scope,
  metric_scope_value,
  metric_name,
  metric_value_numeric
from `project.dinmo_identity.identity_event_profile_run_metrics`
where run_id = 'RUN_ID'
order by metric_scope, metric_scope_value, metric_name;

Find the latest run with processed events:

select
  run_id,
  max(recorded_at) as recorded_at,
  max(if(metric_name = 'new_processed_event_count', metric_value_numeric, null)) as processed_events,
  max(if(metric_name = 'new_stitched_event_count', metric_value_numeric, null)) as stitched_events,
  max(if(metric_name = 'new_excluded_event_count', metric_value_numeric, null)) as excluded_events,
  max(if(metric_name = 'stitch_rate', metric_value_numeric, null)) as stitch_rate
from `project.dinmo_identity.identity_event_profile_run_metrics`
where metric_scope = 'project'
group by run_id
having processed_events > 0
order by recorded_at desc
limit 10;

Investigate exclusions

Count excluded events by reason:

select
  reason,
  count(*) as event_count
from `project.dinmo_identity.identity_event_profile_attribution`
where run_id = 'RUN_ID'
  and attribution_status = 'excluded'
group by reason
order by event_count desc;

Sample excluded events:

select
  source_model_id,
  event_key_value,
  event_timestamp,
  reason
from `project.dinmo_identity.identity_event_profile_attribution`
where run_id = 'RUN_ID'
  and attribution_status = 'excluded'
order by event_timestamp desc
limit 100;

If most excluded events are no_matchable_identifier, inspect the source model mappings and identifier coverage.

If most excluded events are conflicted_identifier_value or limit_conflict, inspect identifier policy and audit events.

Investigate identifier quality

Find identifiers with active conflicts or many conflicted values:

select
  identifier_name,
  max(if(metric_name = 'coverage_rate', metric_value_numeric, null)) as coverage_rate,
  max(if(metric_name = 'all_active_identifier_value_count', metric_value_numeric, null)) as active_values,
  max(if(metric_name = 'all_conflicted_identifier_value_count', metric_value_numeric, null)) as conflicted_values,
  max(if(metric_name = 'all_active_conflicted_identifier_value_count', metric_value_numeric, null)) as active_conflicts
from `project.dinmo_identity.identity_event_profile_run_metrics`
where run_id = 'RUN_ID'
  and metric_scope = 'identifier'
group by identifier_name
order by active_conflicts desc, conflicted_values desc;

Inspect demoted identifier values. Demoted values remain useful audit evidence, but they no longer create new matches:

select
  identifier_name,
  identifier_value,
  resolved_dinmo_stitched_profile_id,
  first_seen_at,
  last_seen_at,
  status_reason
from `project.dinmo_identity.identity_event_profile_identifier_values`
where identifier_status = 'inactive_demoted'
order by last_seen_at desc
limit 100;

Inspect expired identifier values:

select
  identifier_name,
  identifier_value,
  resolved_dinmo_stitched_profile_id,
  active_until,
  last_seen_at
from `project.dinmo_identity.identity_event_profile_identifier_values`
where identifier_status = 'inactive_expired'
order by active_until desc
limit 100;

Investigate one event profile

Start from an event profile ID:

select *
from `project.dinmo_identity.identity_event_profiles`
where dinmo_stitched_profile_id = 'DINMO_STITCHED_PROFILE_ID'
   or resolved_dinmo_stitched_profile_id = 'DINMO_STITCHED_PROFILE_ID';

List identifiers on the profile:

select
  identifier_name,
  identifier_value,
  identifier_status,
  status_reason,
  first_seen_at,
  last_seen_at,
  active_until
from `project.dinmo_identity.identity_event_profile_identifier_values`
where resolved_dinmo_stitched_profile_id = 'DINMO_STITCHED_PROFILE_ID'
order by priority, identifier_name, first_seen_at;

List events attached to the profile:

select
  source_model_id,
  event_key_value,
  event_timestamp,
  attribution_status,
  reason
from `project.dinmo_identity.identity_event_profile_attribution`
where resolved_dinmo_stitched_profile_id = 'DINMO_STITCHED_PROFILE_ID'
order by event_timestamp desc
limit 500;

Investigate profile merges

Use redirects when older profile IDs may have merged into a surviving profile:

select
  dinmo_stitched_profile_id,
  resolved_dinmo_stitched_profile_id
from `project.dinmo_identity.identity_event_profile_redirects`
where dinmo_stitched_profile_id = 'OLD_DINMO_STITCHED_PROFILE_ID'
   or resolved_dinmo_stitched_profile_id = 'DINMO_STITCHED_PROFILE_ID';

Always use resolved_dinmo_stitched_profile_id for downstream joins.

Investigate audit events

Audit events explain why the graph changed:

select *
from `project.dinmo_identity.identity_event_profile_audit_events`
where run_id = 'RUN_ID'
order by event_timestamp desc
limit 200;

Use audit events together with identifier values when investigating a conflict or demotion:

select *
from `project.dinmo_identity.identity_event_profile_audit_events`
where reason in ('conflicted_identifier_value', 'limit_conflict')
order by event_timestamp desc
limit 200;

Rollout checklist

For a new Event Stitching project:

1. Prepare event data and check identifier coverage.

2. Create the project with conservative policy.

3. Run manually.

4. Review Overview and Runs.

5. Inspect Quality exclusion reasons and active conflicts.

6. Query sample profiles and excluded events in the warehouse.

7. Adjust policy if needed.

8. Enable the schedule only after the graph is explainable.

9. Use resolved_dinmo_stitched_profile_id in downstream models.
