SSO using Microsoft Entra ID

An Microsoft Entra ID user needs to be added to the desired workspace to allow the connection to the DinMo app

In the Microsoft Entra ID Dashboard

Step 1: Create a custom SAML application for DinMo

1. Sign in your Microsoft Entra account as an admin

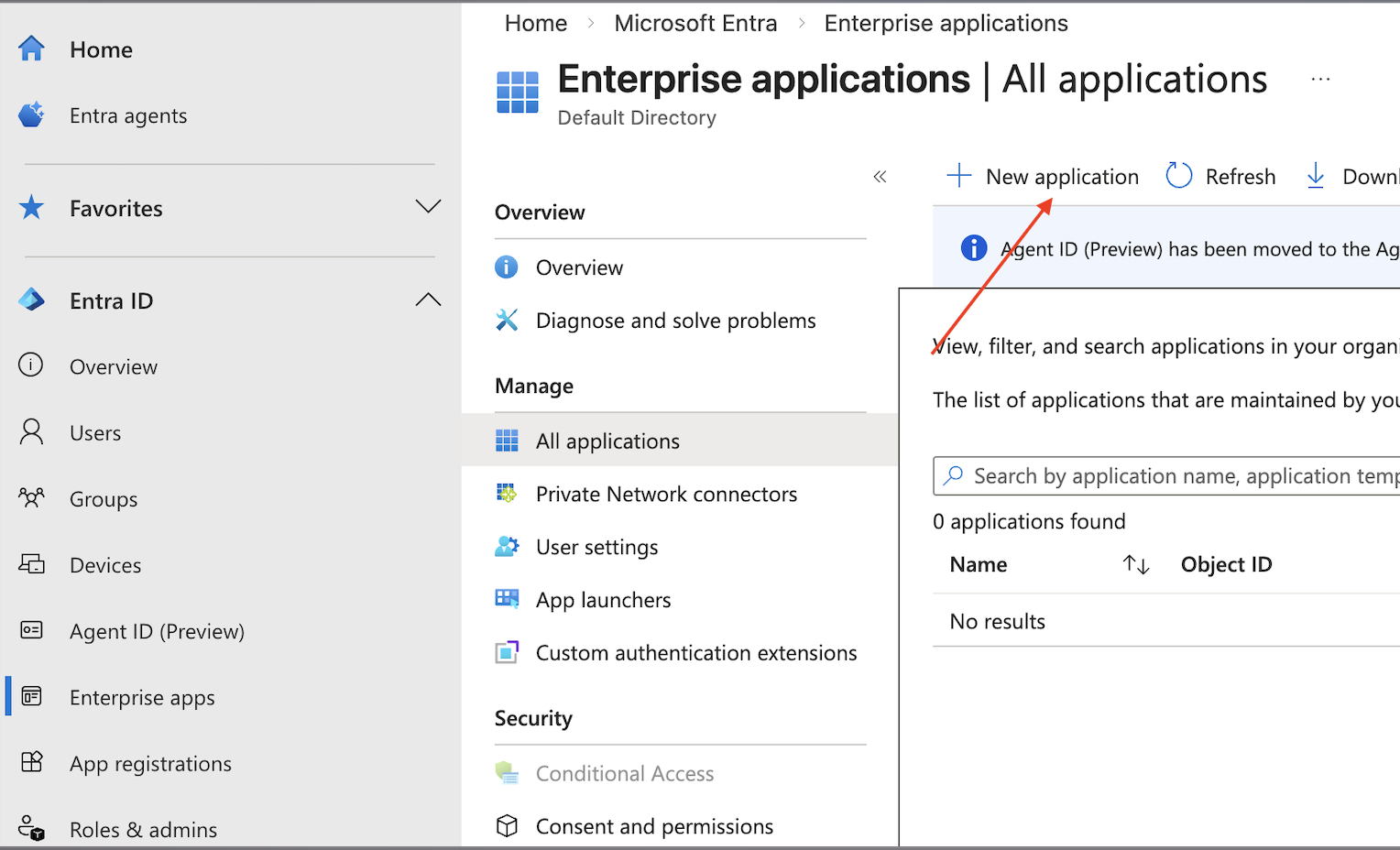

2. Go to the Entreprise apps and click on New application

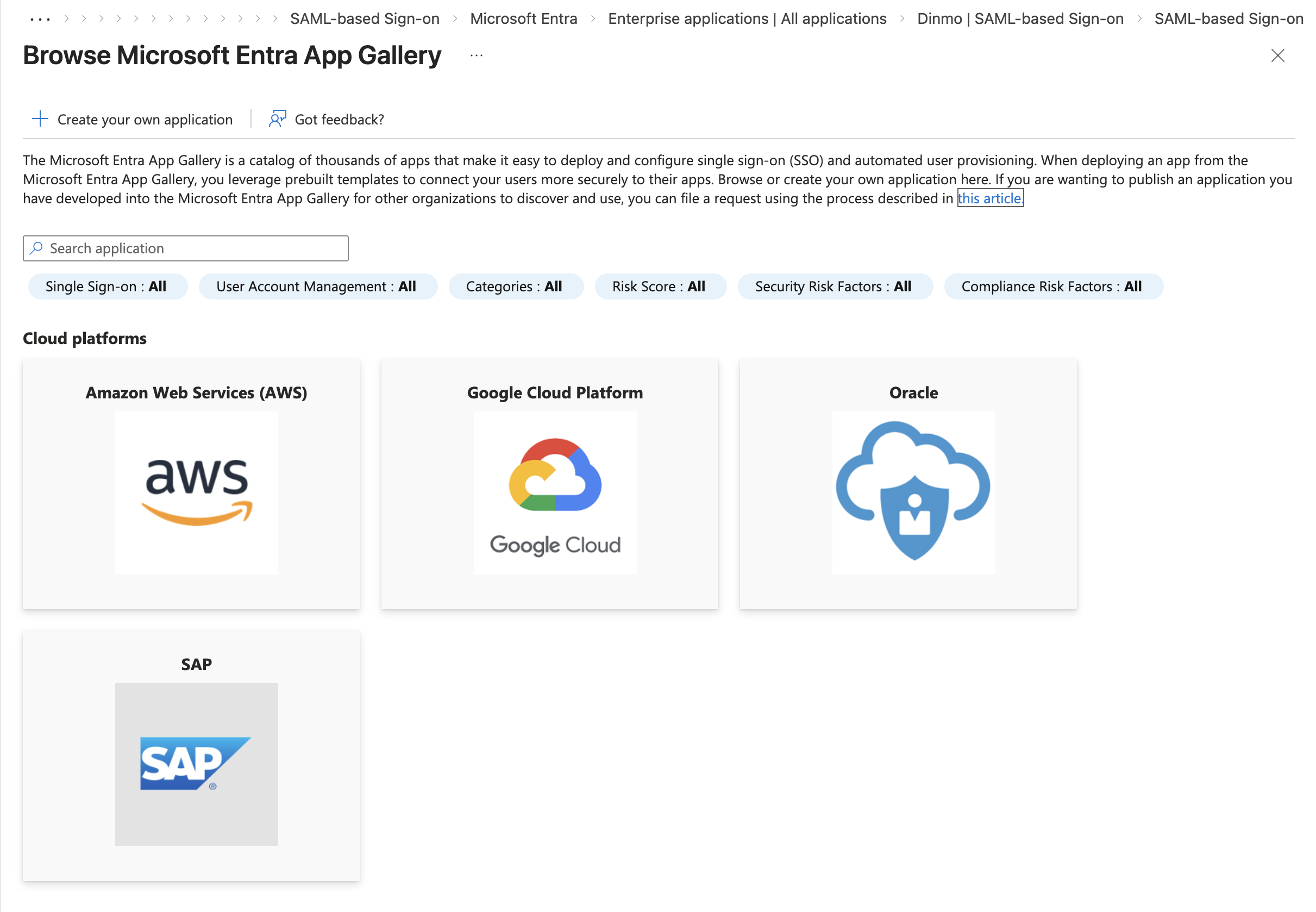

1. Click on "Create your own application"

1. Enter a name (DinMo App for example) and click on Create and your app will be created

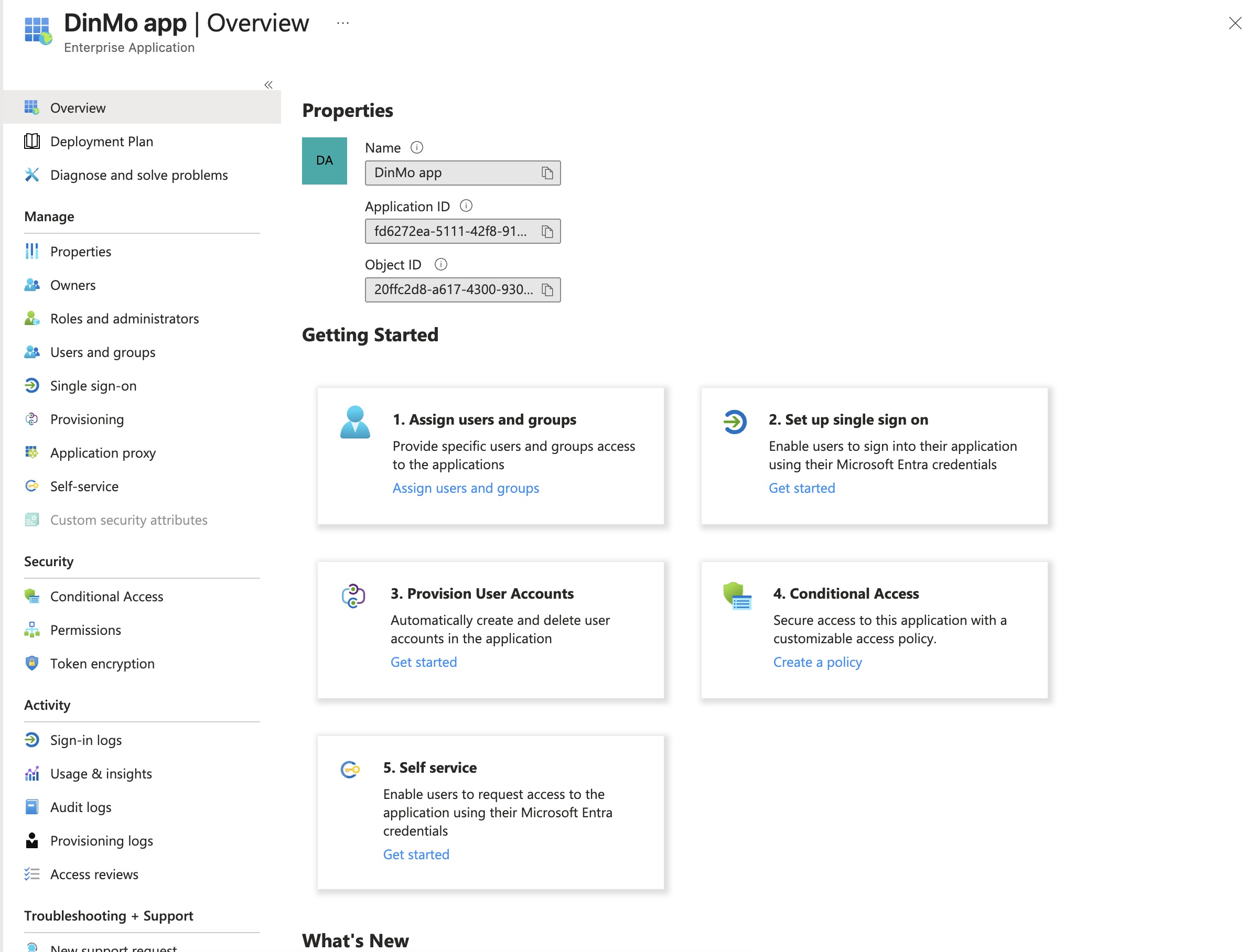

2. From this screen, click on Set up single sign on

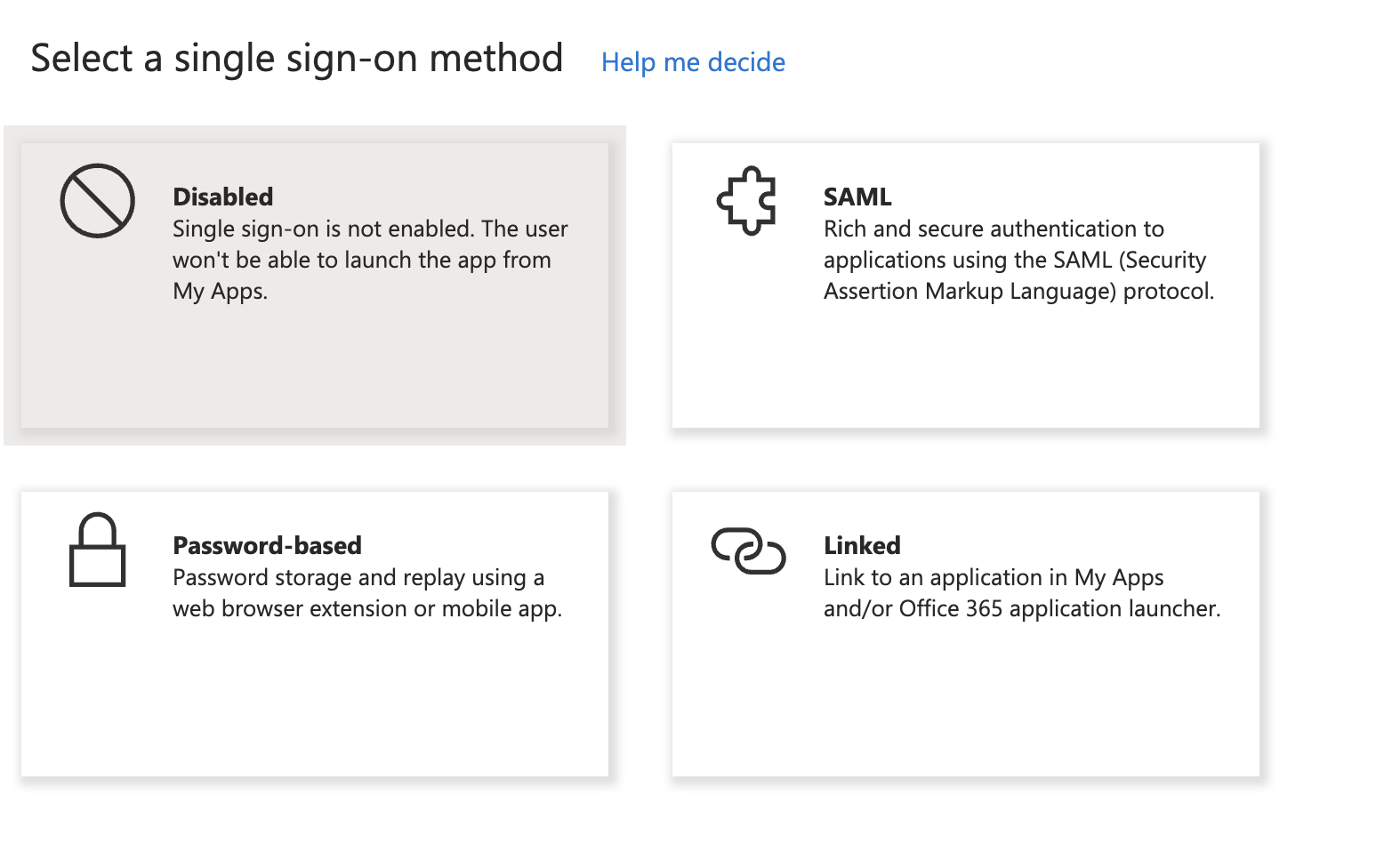

1. Choose SAML

1. In this screen, choose Edit to specify the Identifier and the Reply URL

• Identifier (Entity ID): https://dinmo-prod.firebaseapp.com

• Reply URL: https://dinmo-prod.firebaseapp.com/__/auth/handler

1. Configure the Attributes & Claims section

Important: You must configure the Attributes & Claims section, specifically the Unique User Identifier, as it is mapped to DinMo's Firebase NameID field and must contain a valid email address.

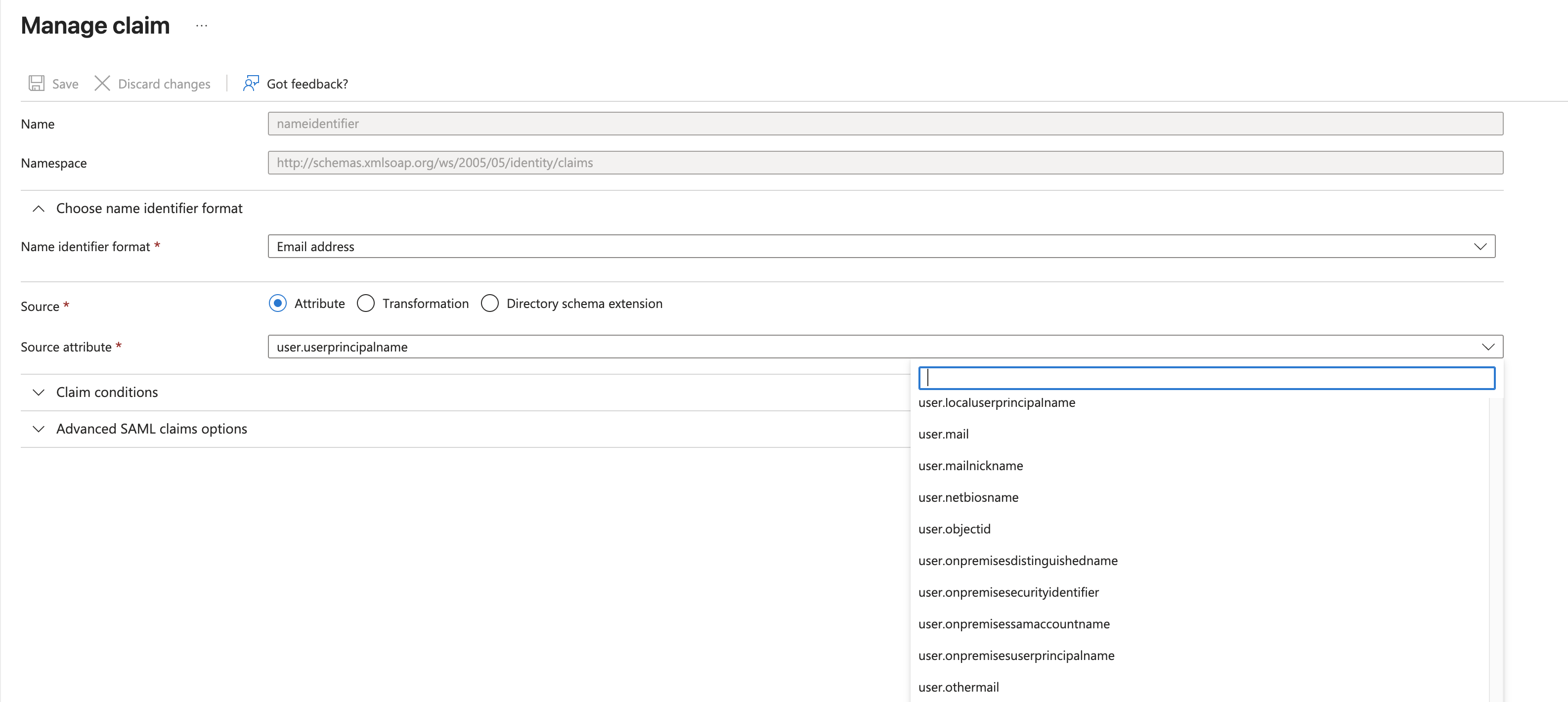

To do so, change source attribute to user.mail and click Save.

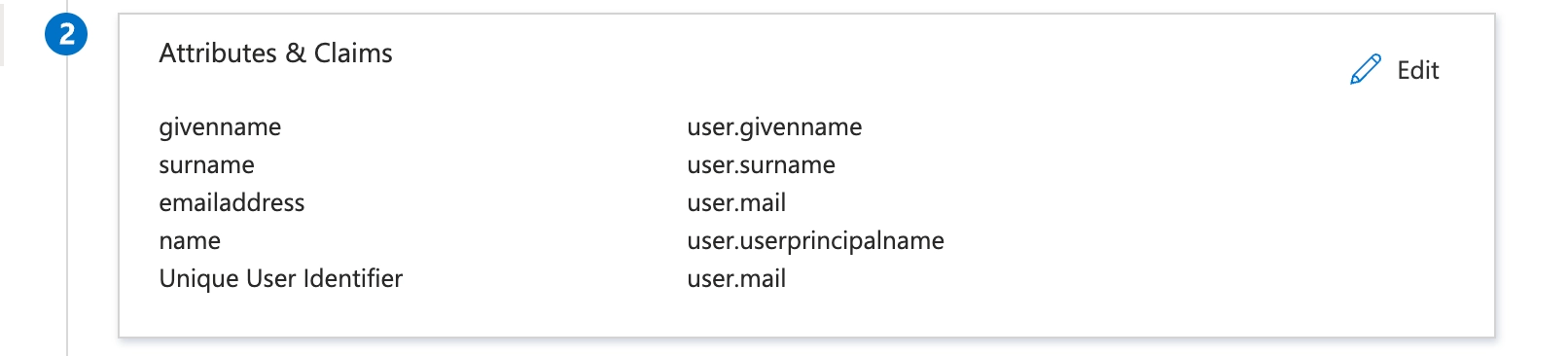

A good configuration looks like that:

Step 2: Assign people to your SAML app

The same email address must also exist and be authorized in the customer's Identity Provider (IdP).

In your Microsoft Entra ID app, you need to add users that will access DinMo app.

• From Users and Groups menu entry and click on Add user/group

• Click on Users/None selected

• Add the users who should be allowed to connect to the application.

In the DinMo Application

Step 3: Configure Microsoft Entra in DinMo

1. Sign in to your DinMo workspace as an organization admin

2. Go to your organization management space

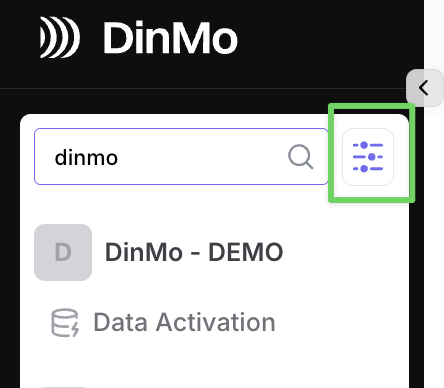

• Click on your workspace name in the top left navigation menu.

• Select Manage Workspaces.

• Go to the SSO Configuration tab.

1. Click on the Microsoft Entra logo

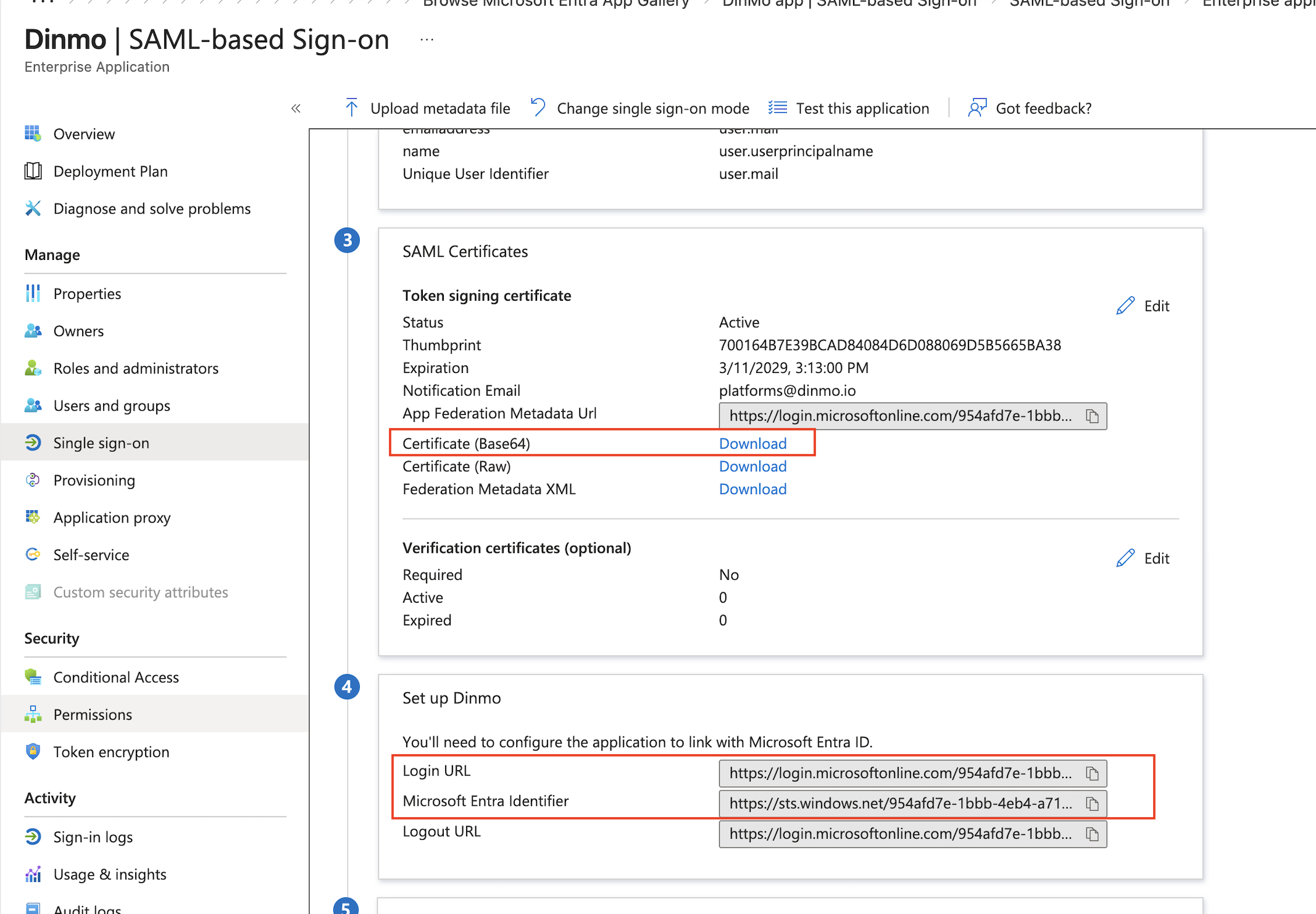

2. Fill in the Authentification Settings:

• Login URL

• Microsoft Entra Identifier

• Download the certificat (Base 64) to access the code to copy/paste on our form

1. Click Save

2. Collect the generated values:

   • DinMo’s Entity ID

   • DinMo’s Callback URL

   • Your Portal URL: The URL used to connect to your DinMo workspace through SSO.

Step 4: Limit Access to Authorized Users (Optional)

For additional security, you can restrict access to your DinMo workspace to authorized users only in your IdP. To enable this, toggle the Enable SAML-only authentication option.

---

🎉 Congratulations! You have successfully enabled SSO for all your DinMo account workspaces.

Connecting to a workspace using SSO

Method 1: using DinMo sign-in

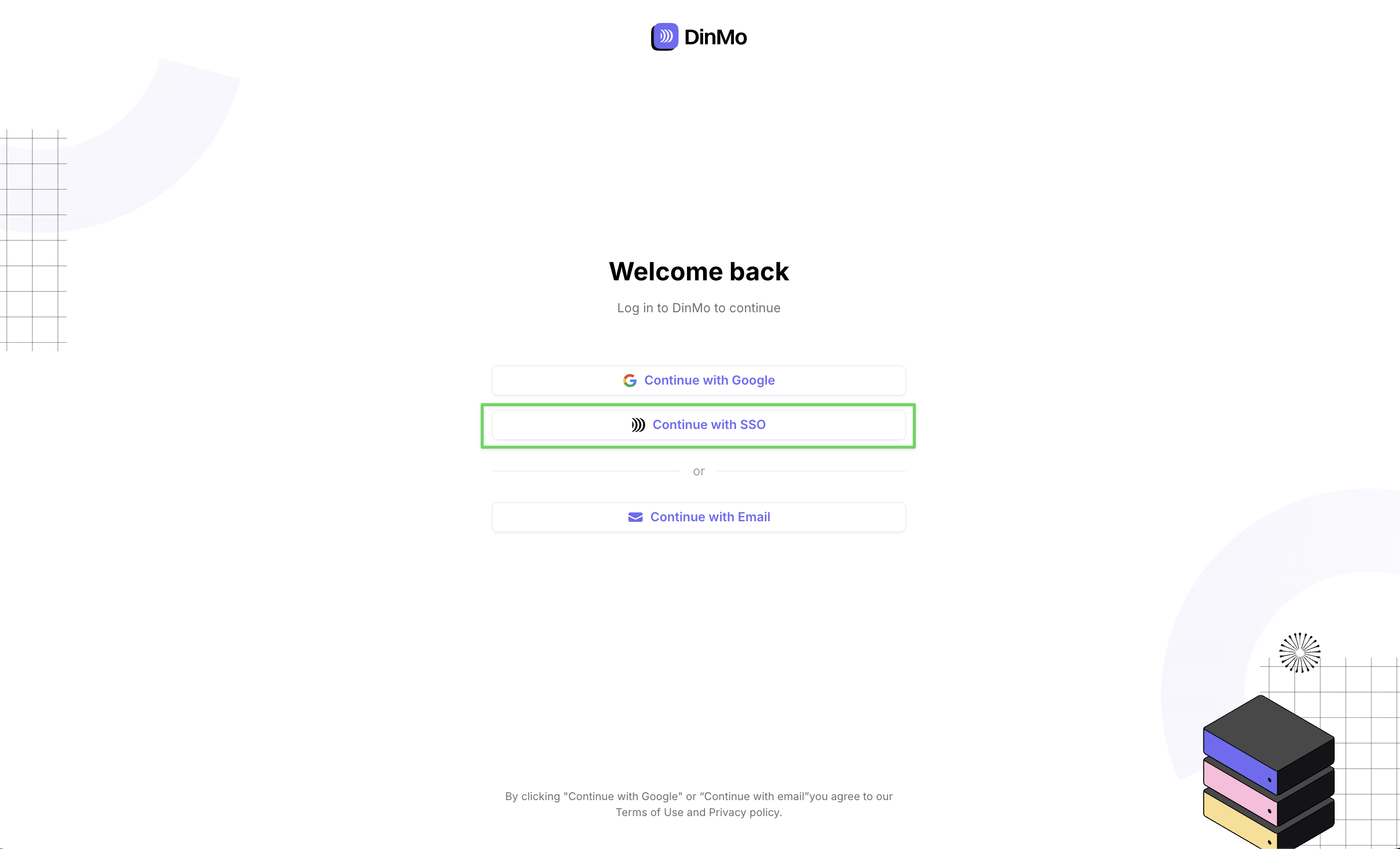

• Go to https://app.dinmo.io/sign-in

• Click on "Continue with SSO"

• Enter your SSO Portal Key

• Validate your connection with Microsoft Entra

Method 2: using your specific URL

• Go to https://app.dinmo.io/sso?key=your_key

• Validate your connection with Microsoft Entra
